Double Eye Spring Kit List

Double Eye Spring Kits Boat Trailer

HOW TO MEASURE SPRINGS

•  KITS COME COMPLETE W/2 DOUBLE EYE SPRINGS WITH MOUNTING HARDWARE FOR AXLE (2×2 OR 2×3)
• GALVANIZED SINGLE AXLE MOUNTING KIT SUPPLIES ALL NECESSARY HARDWARE TO MOUNT SPRINGS ON ONE TRAILER AXLE.
• TRAILER SPRINGS U.S. OR IMPORT

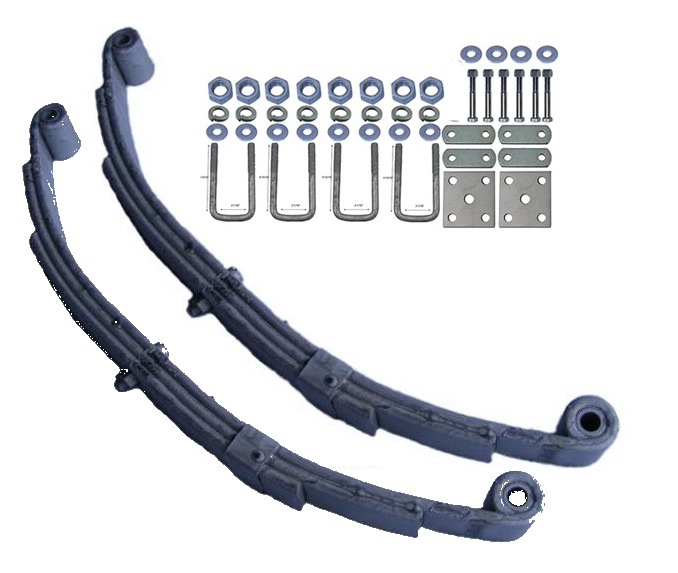

• KITS INCLUDE
• 2-ea 20” DE 3-LEAF SPRINGS W/ BUSHINGS PJ1350
• 2-ea 5- HOLE PLATE HDG PK1250
• 4-ea 2-HOLE SHACKLE HDG PK1300
• 6-ea CAP SCREW PLTD NC ½”X3-1/2” GRADE 5
• 1- ea CAP SCREW PLTD NC ½”X4-1/2” GRADE 5
• 7-ea NI-LOCK NUT ½-13 PLTD
• 14-ea WASHER FLAT USS ½ HDG
• 8-ea NUT HEX ½-13 HDG
• 8-ea WASHER LOCK ½ HDG
• 4-ea U-BOLTS
• ORDER 2 KITS FOR TANDEM AXLE TRAILERS
• IF EQUALIZERS NEEDED ORDER SEPARATELY (PK1950)
• Part Number Leafs  Length       Capcity/per spring
• PJ1350kit        3lf         20″               1500lbs
• PJ1400kit       3lf         25-1/4″        2000lbs
• PJ1450kit       4lf         25-1/4″         2500lbs
• PJ1500kit       5lf         25-1/4″         2950lbs
