HUB KIT 5 LUG GALVANIZED 1-1/16″ UFP PD1602
Description
HUB KIT 5 LUG GALVANIZED 1-1/16″ UFP PD1602
Product Overview
Model: MAGICTILT UFP PD1602 Hub Kit Assembly
Capacity: 1,250 lbs per hub (typically used on light-duty trailer axles)
Bolt Pattern: 5 Lug (standard 5 on 4.5″ pattern for many trailer wheels)
Bearing Size: 1-1/16″ (both inner and outer bearings)

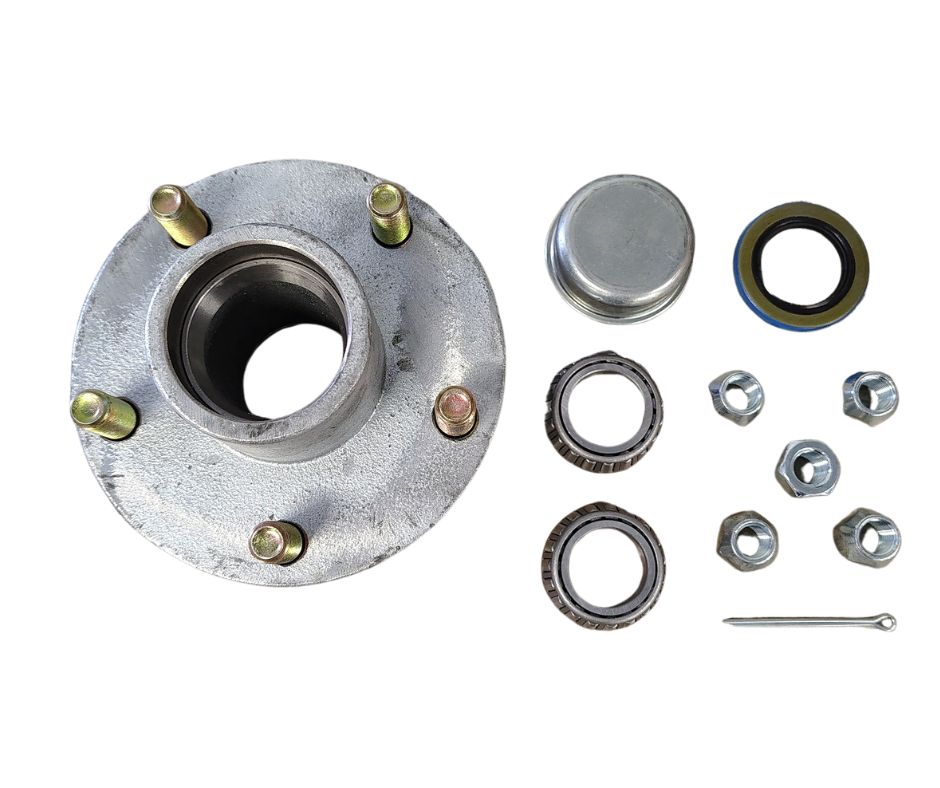

Kit Includes
| Part | Description | Part Number |
|---|---|---|
| Hub | 5-lug hub with pre-installed races (UFP) | – |
| Bearings (x2) | 1-1/16″ bearings | PE1100 |
| Lug Nuts (x5) | Standard 1/2″-20 trailer lug nuts | PD2250 |
| Seal | UFP grease seal | PE2010 (Alt. 198-138) |
| Cotter Pin | For securing the castle nut | PH2012 |
| Dust Cap | 1.98″ diameter press-in cap | PE2250 |
| Optional Upgrade | Bearing Buddy (grease saver) | PF1054 |
Compatible Bearing Kit
-
Bearing Kit: PE1100
-
Includes both bearings and the grease seal needed for this hub.
-
Notes / Compatibility
-
Designed for UFP (Unique Functional Products) style axles, common on Magic Tilt boat trailers.
-
Verify your spindle size is 1-1/16″ for both inner and outer bearings before ordering.
-
Fits standard 5 on 4.5″ wheel bolt pattern used in many small boat, utility, and PWC trailers.
