WINCH POST/SEAT ASSY ADJUSTABLE PO1996

Description

WINCH POST/SEAT ASSY ADJUSTABLE PO1996

DUE TO PARTS AVAILABILITY FACTORY INSTALLED BOW STOP ROLLERS MAY VARY IN SHAPE AND COLOR FROM PICTURE SHOWN

• PRO DRIVE ADJ POST/SEAT ASSY
• GALVANIZED SLANTED WINCH POST

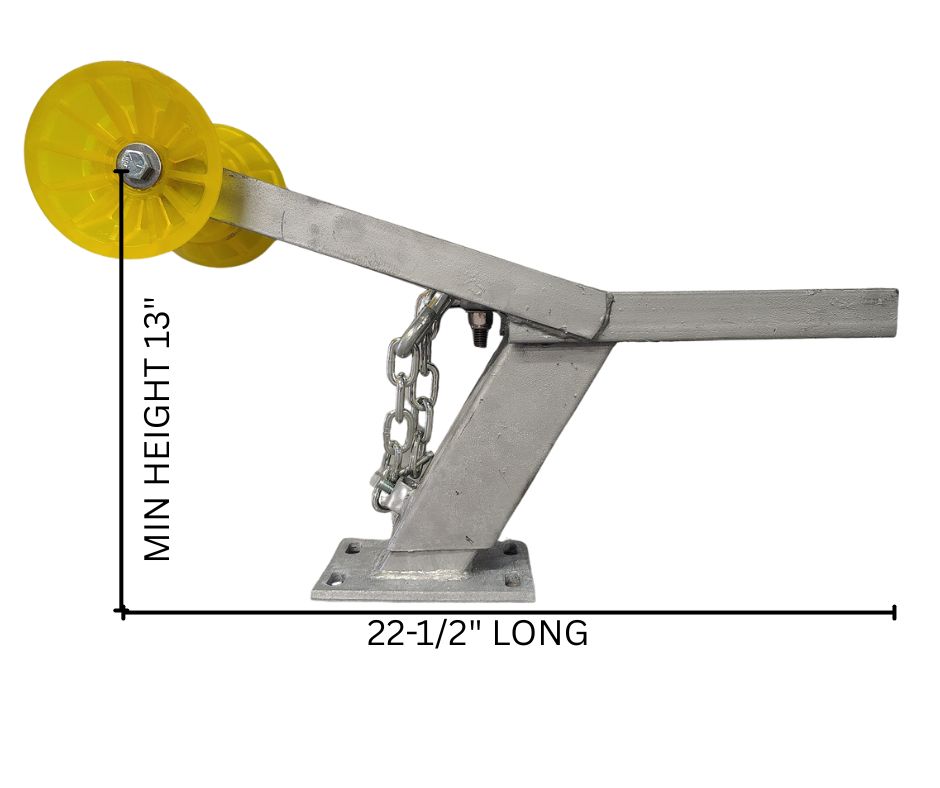

• MIN. HEIGHT 13″ FROM MOUNTING BASE TO CENTER OF ROLLER

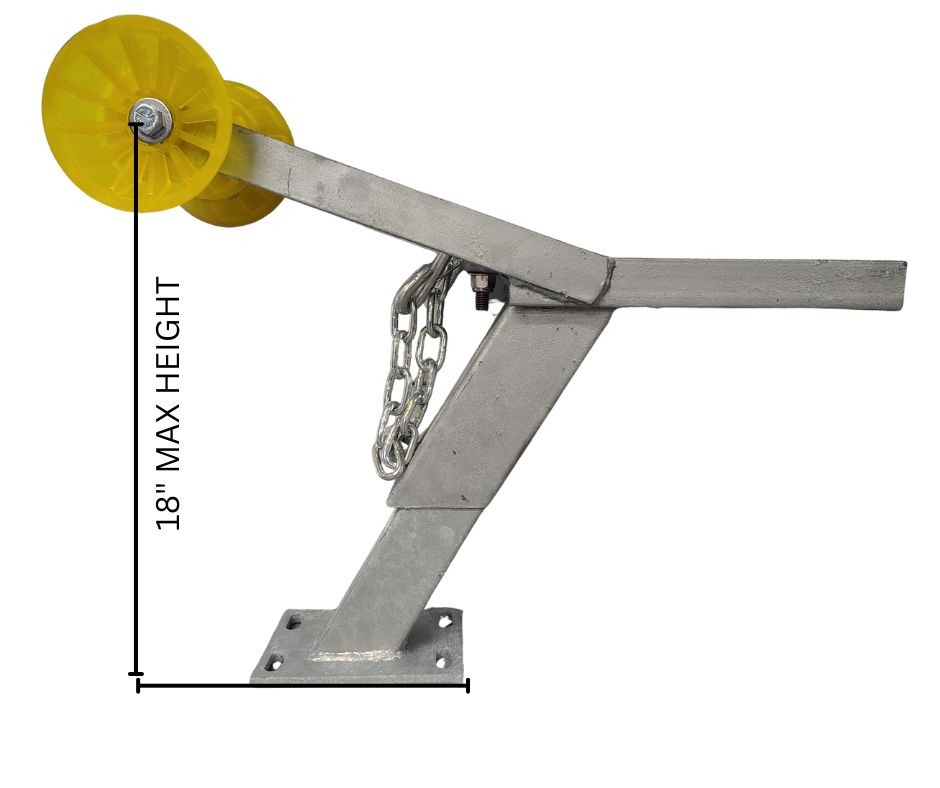

• MAX. HEIGHT 18″ FROM MOUNTING BASE TO CENTER OF ROLLER
• WINCH SEAT 22-1/2″ FROM BACK TO END OF ROLLER
• MOUNTING PLATE 7″X5″ FITS 3″ WIDE MATERIAL
• 1/2″ HOLE SIZE FOR U-BOLTS

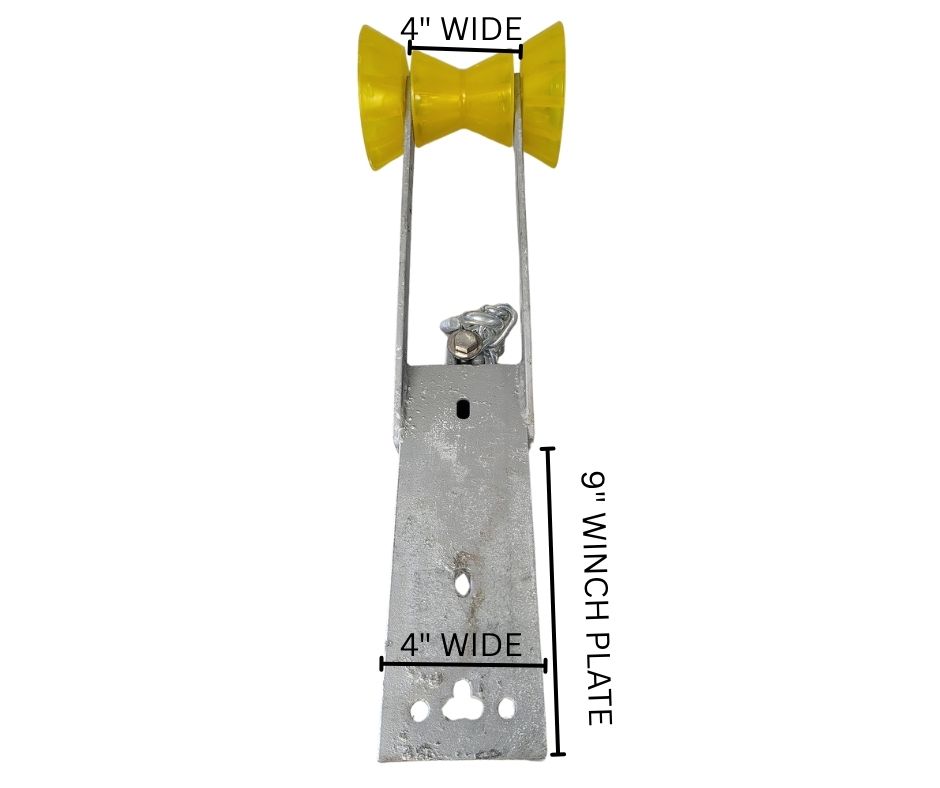

• 4″ BOW ROLLER AND 18″ SAFETY CHAIN INCLUDED
• MOUNTING HARDWARE INCLUDED TO FIT 3″X3″ OR 3″X4″ TONGUE
• WINCH SOLD SEPERATELY
