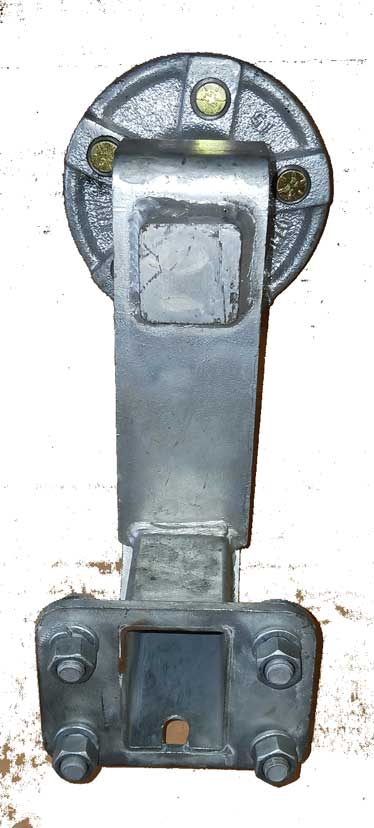

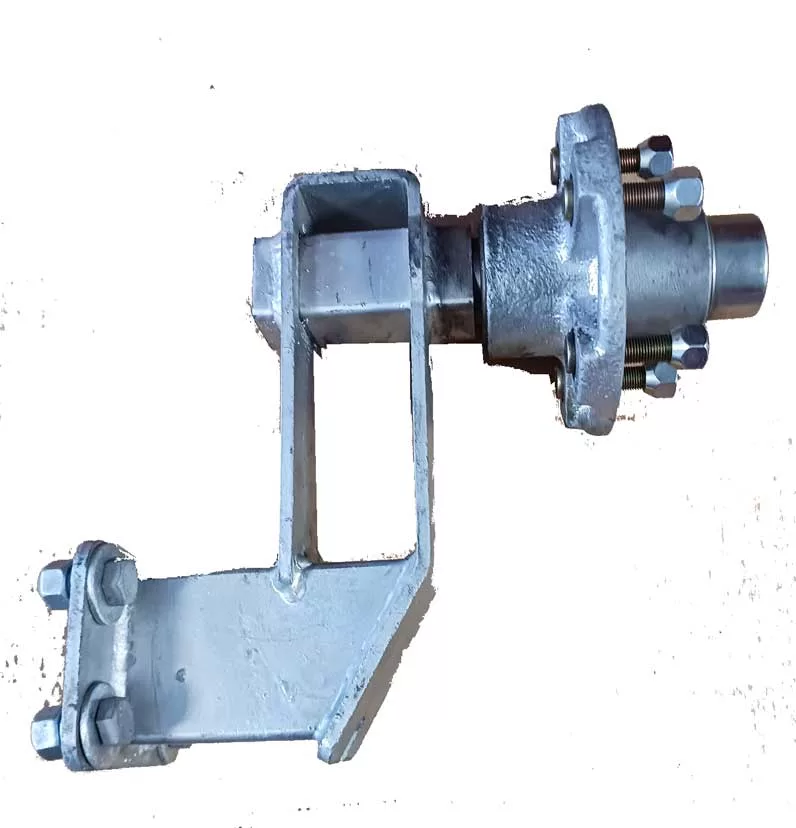

SPARE MOUNT I-BEAM W/HUB 861-3215

Description

SPARE MOUNT I-BEAM W/HUB 861-3215

• I-BEAM SPARE MOUNT WITH 5 – LUG HUB
• DESIGNED TO MOUNT ON THE SIDE OF ANY I-BEAM 4-1/2′ OR TALLER (ALUMINUMI-BEAM)
• INCLUDES MOUNT HARDWARE
• 4EA 1/2×1-1/2″ GALVANIZED HEX BOLT, NUTS AND WASHERS
• HUB KIT (OEM) 5 LUG 1-3/8 x 1-1/16″ BEARINGS ON 4.5 ” CIRCLE (5 ON 4.5)
• Offers the convenience of having not only a spare tire, but the entire hub and bearings.
• Just remove your dust cap – buddy bearing – or posilub cap whichever you have
• Take out the cotter pin and castle nut which allows you to pull the entire tire, wheel and hub as a unit.
• It doesnt matter if its the tire or bearings this will get you off the highway and on your way qickly safely and much easier.

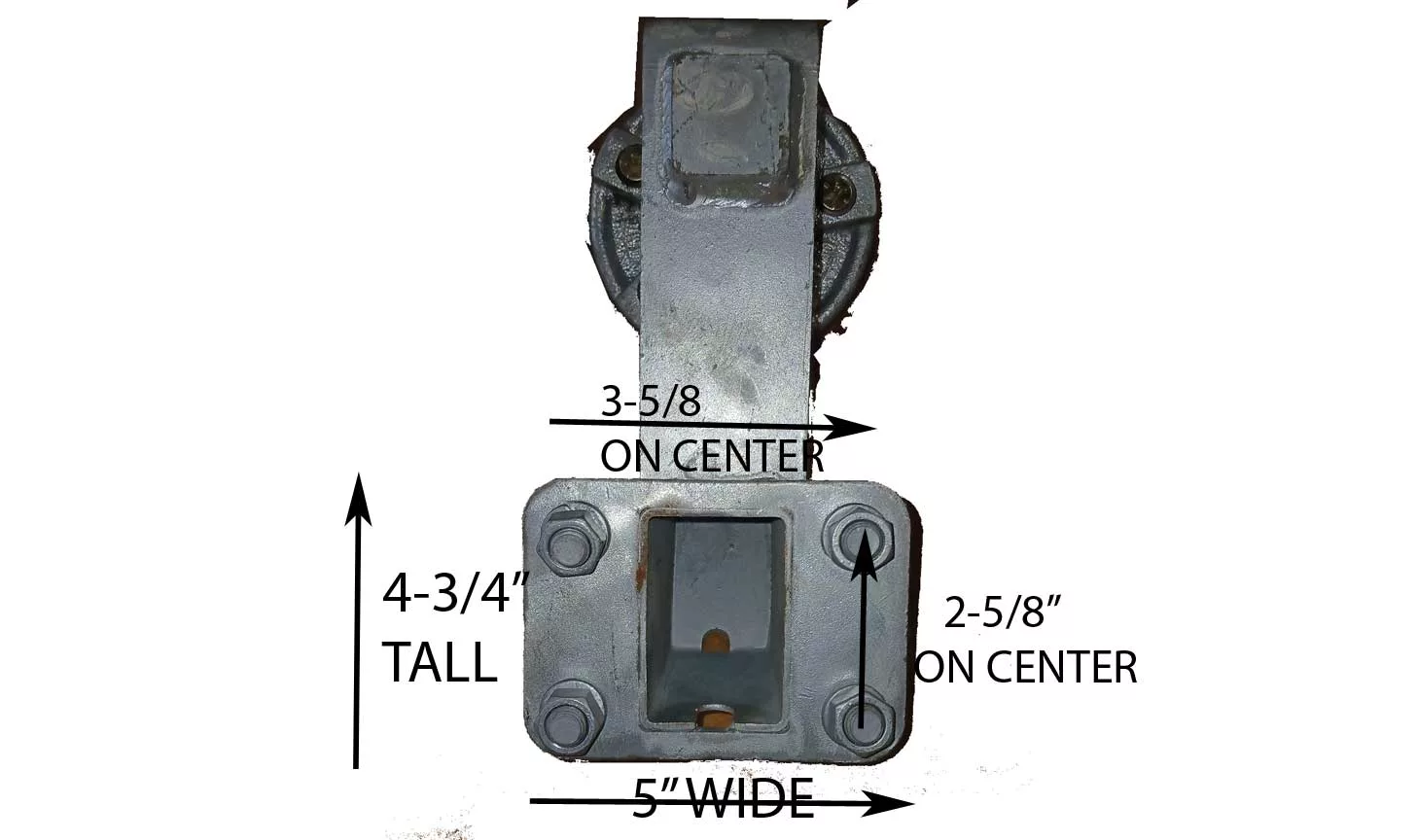

• Dimensions
• Mounting plate
• 5″ wide
• 3-3/4 tall
• mounting holes 3-5/8′ wide 2-5/8′ tall

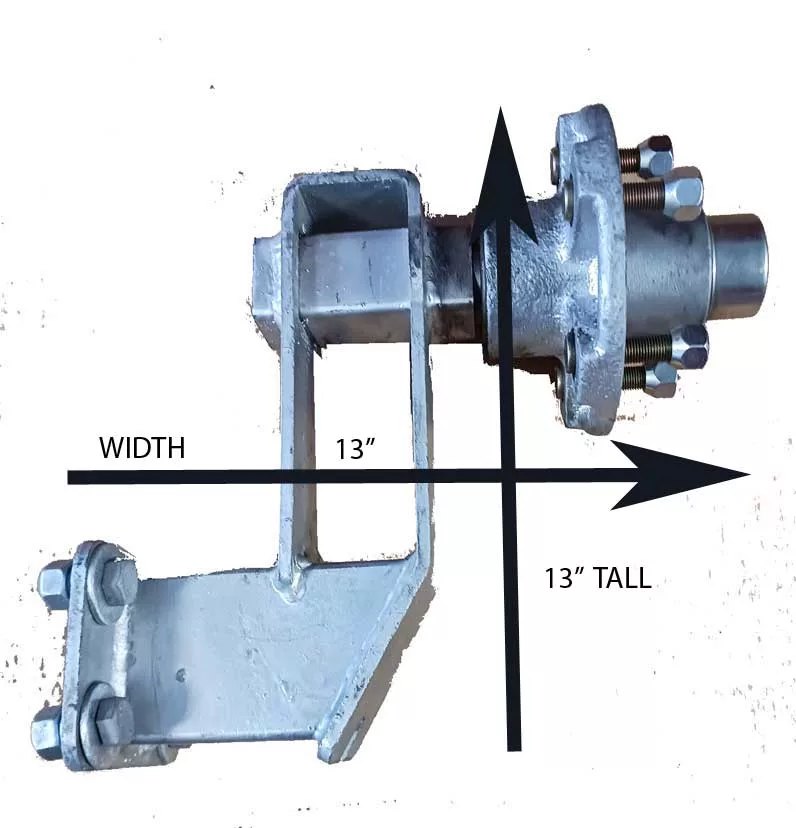

• 13″ overall height
• 13″ overall width
• see diagram
