BOW REST ASSY-PINNACLE 2-PC NARROW W/BMPR PO1977N

Description

BOW REST ASSY-PINNACLE 2-PC NARROW W/BMPR PO1977N

• BOW CATCHER BOW STOP
• NARROW PINNACLE 2-PC BOW REST ASSY.W/BUMPERS
• HEAVY DUTY RUBBER BUMPERS 10″ L X 4-1/2″ W X 3-1/2″ H

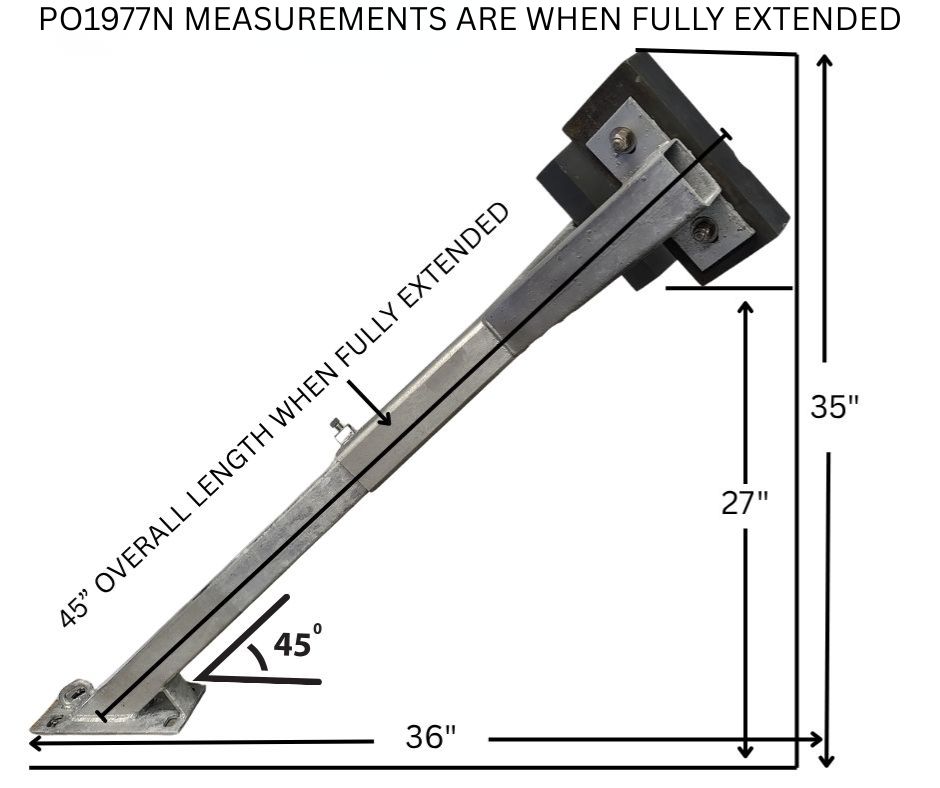

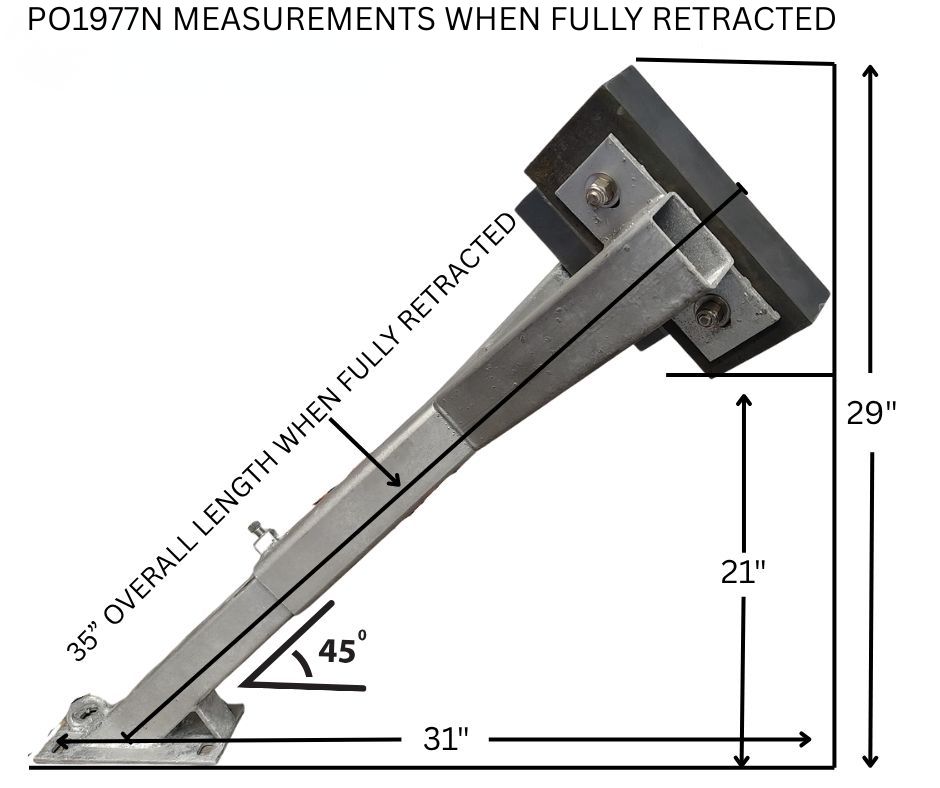

• ADJUSTABLE LENGTH 35″ MIN 45″ MAX
• HEIGHT FROM TOP OF TONGUE TO TOP OF BUMPERS 29″ MIN 35″ MAX

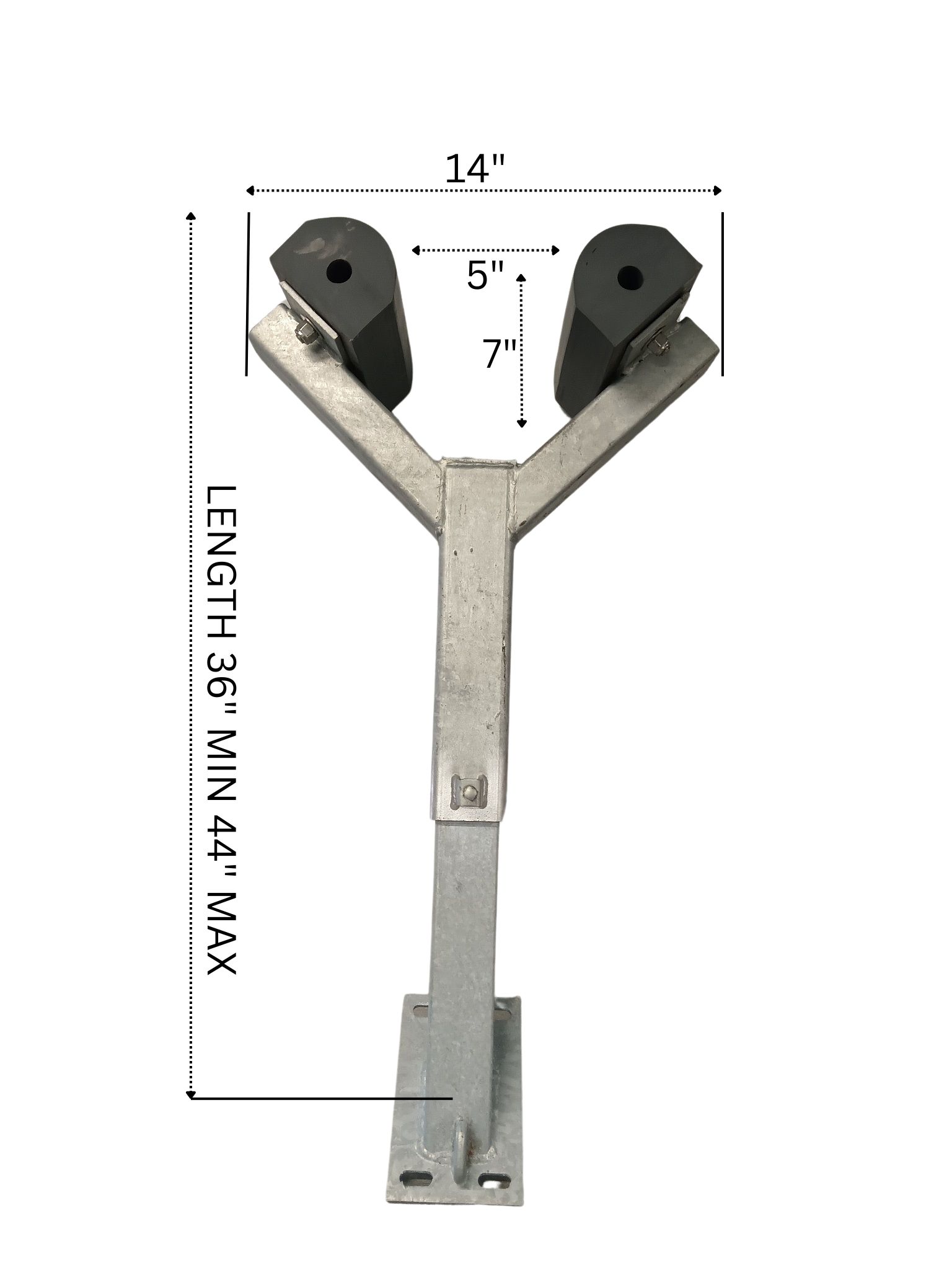

• 5” OF SPACE BETWEEN RUBBER BUMPERS.
• 7” DISTANCE FROM CENTER OF RUBBER BUMPER TO CENTER OF V IN BOW STOP.
• RUBBER BUMPERS CAN BE PUCHASED SEPERATLY NW0192
• HOT DIPPED GALVANIZED MATERIAL AND U-BOLTS
• FITS 3″ WIDE TONGUE (SPECIFY TONGUE SIZE DURING CHECKOUT IN THE NOTES BOX 3×3 ,3×4,3×5)
• MOUNTING U-BOLTS INCLUDED
• IF U-BOLTS ARE NOT SPECIFIED U-BOLTS FOR 3″x 3 OR 3×4″ (U-BOLTS FIT BOTH) TONGUE WILL BE SHIPPED
• REPLACEMENT BOTTOM PO1945
