8″ ALUMINUM BUNK BRACKET KIT PT1565ALK8

Description

8″ ALUMINUM BUNK BRACKET KIT PT1565ALK8

• 8″ 3X3 X-MEM ALUMINUM BUNK BRACKET KIT WITH STAINLESS HARDWARE

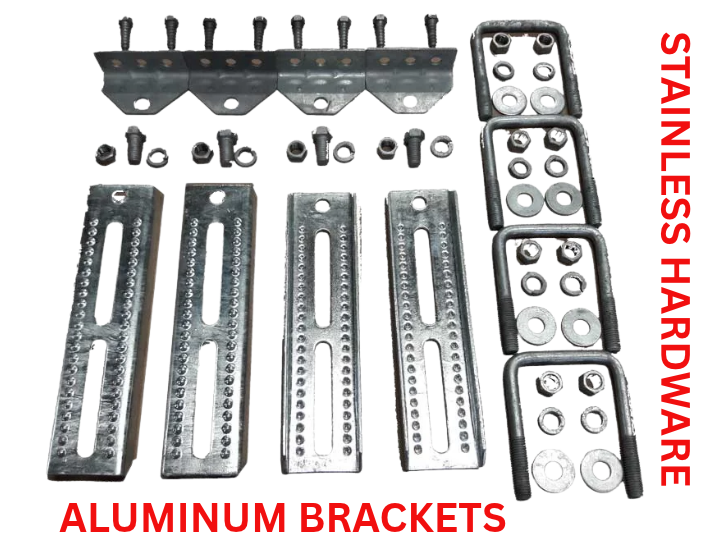

• KIT INCLUDES
• 4ea 8″ TALL BRACKETS ALUMINUM PT1565AL
• 4ea ALUMINUM PIVOT (SWIVEL TOPS) L BRACKETS
• 4ea STAINLESS HEX BOLTS 1-1/2″ W/SS NI-LOCK NUTS & SS FLAT WASHERS
• 8ea 3/8 STAINLESS LAG BOLTS WITH 3/8 SS FLAT WASHERS
• 4ea U-BOLTS STAINLESS 1/2″ W/STAINLESS NUTS FLAT WASHERS
• THE PT1565ALK8 8” BRACKET WILL GIVE YOU 4-1/2” MAXIMUM HEIGHT AND 3” MIN HEIGHT FROM TOP OF CROSS MEMBER TO BOTTOM OF BOARD

IDEAL FOR FRESH AND SALT WATER BOAT TRAILERS.
COMPLETE KIT INCLUDES ALL MOUNTING HARDWARE FOR TWO 2×4 OR 2×6 LAY FLAT BUNK BOARDS
READY TO ASSEMBLE OUT OF BOX ON 3″×3″ CROSS MEMBERS.
THIS STYLE BRACKET HAS SLOTTED HOLES FOR HEIGHT ADJUSTMENT.

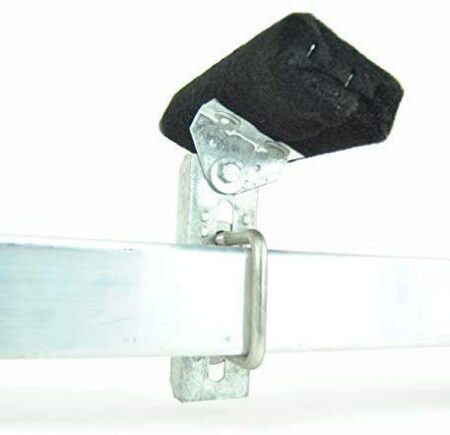

THE L-BRACKET (SWIVEL TOP) ALLOWS YOU TO ADJUST THE ANGLE TO YOUR BOATS HULL.THE PT1565 8” BRACKET WILL GIVE YOU 4-1/2” MAXIMUM HEIGHT AND 3” MIN HEIGHT FROM TOP OF CROSS MEMBER TO BOTTOM OF BOARD

THIS HARDWARE IS NOT BRAND SPECIFIC AND FITS MOST BRANDS -MAGIC TILT, ROAD KING, CONTINENTAL, AND MANY MORE
