WIRE HARNESS W/COMPLETE GROUND 4 WAY

Description

WIRE HARNESS W/COMPLETE GROUND 4 WAY

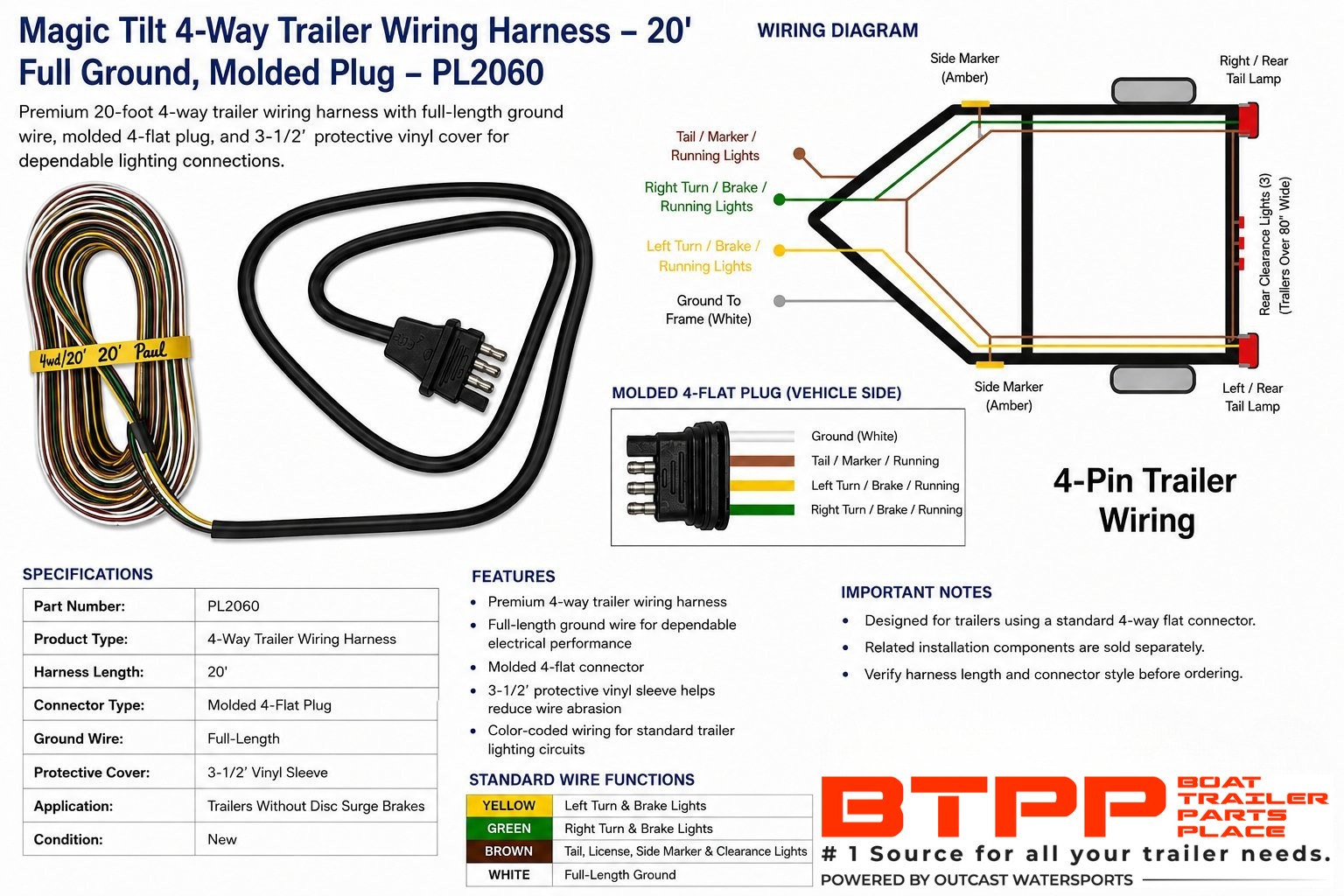

• PL2060 – 20FT

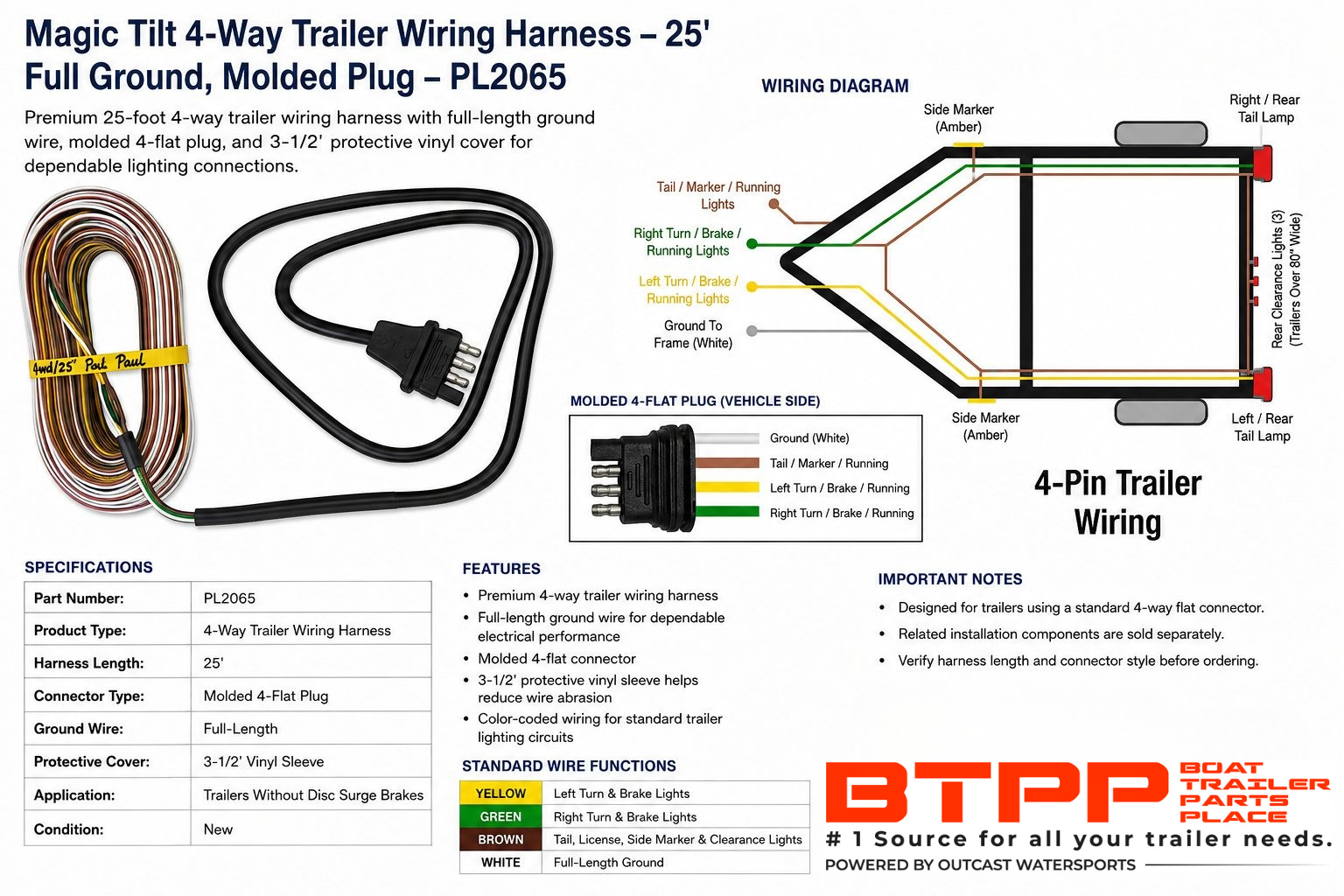

• PL2065-25FT

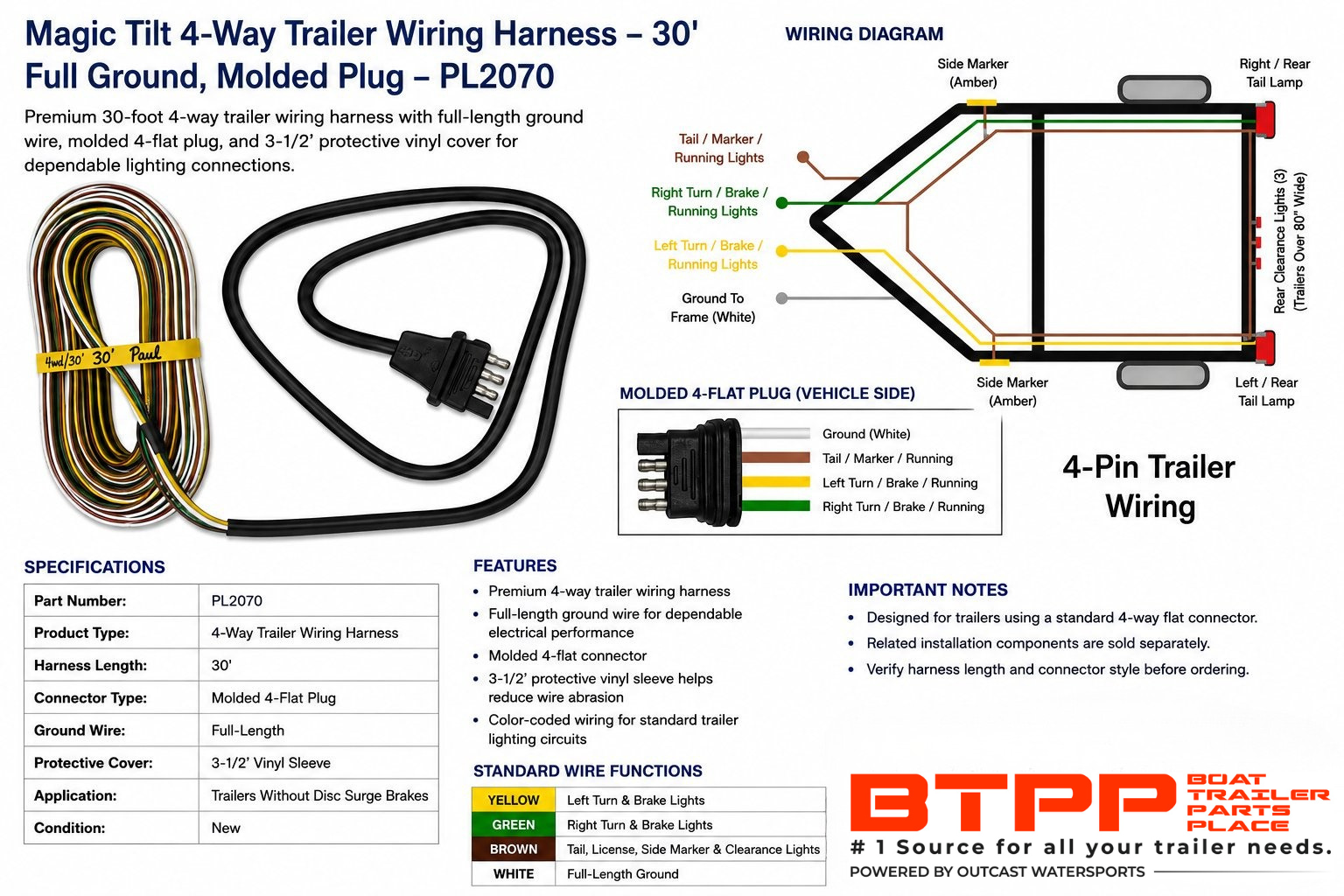

• PL2070 – 30FT

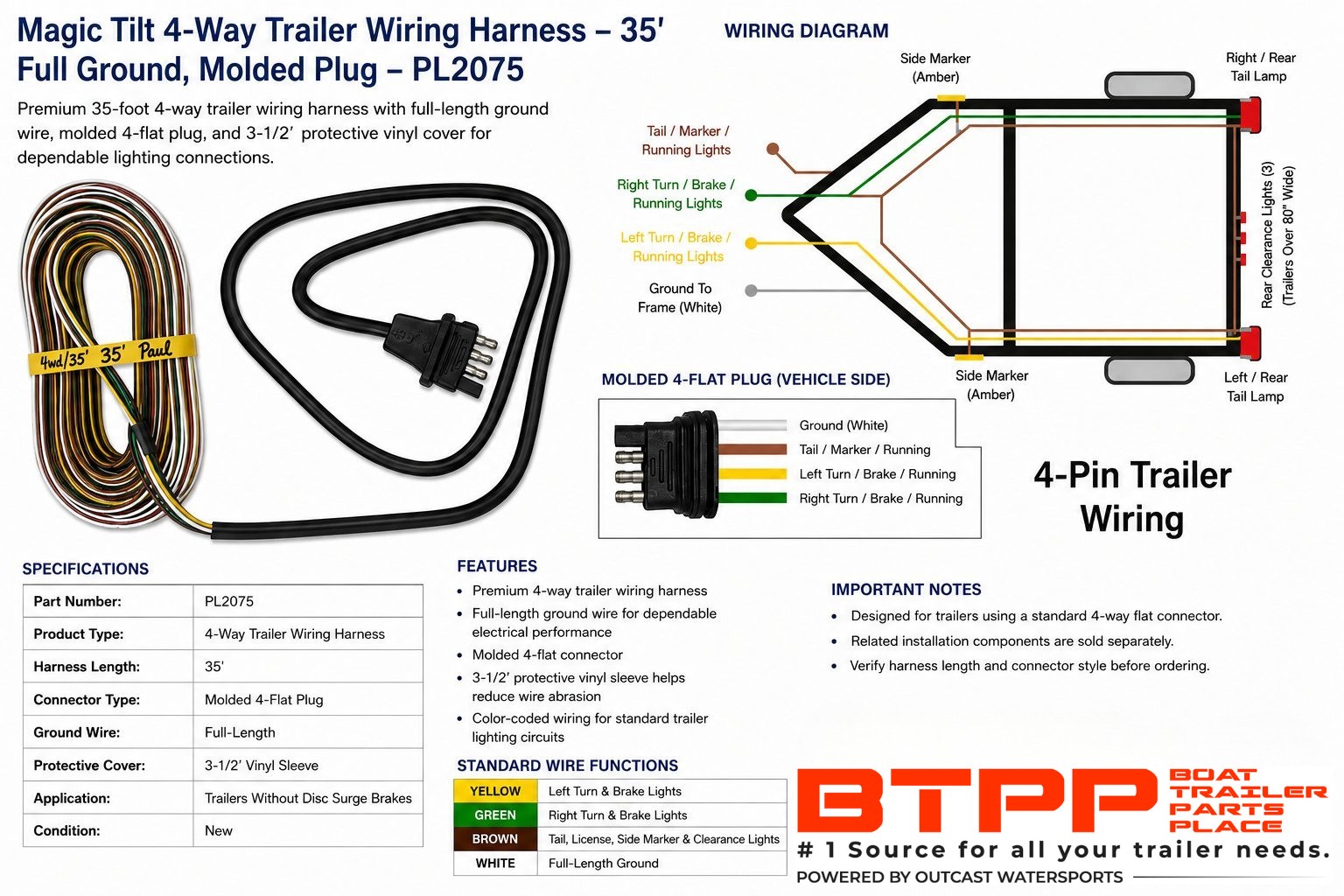

• PL2075 – 35FT
• These 4-way wire harnesses feature full-length wishbone-style wiring with dedicated full-length ground wires for improved reliability.

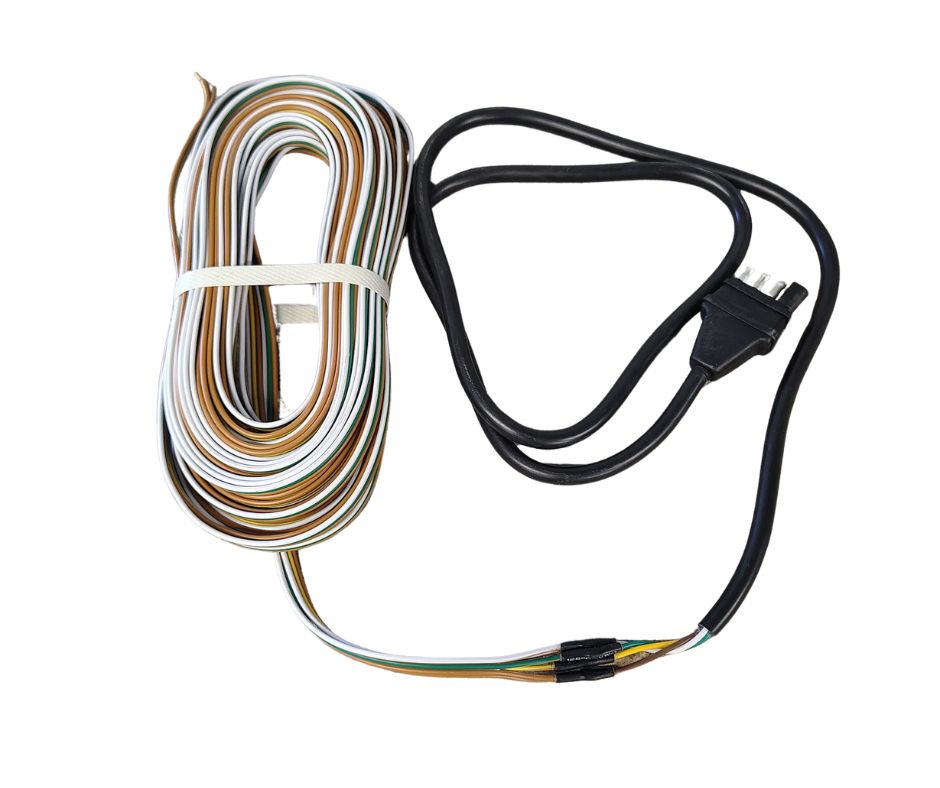

• Each harness includes a 30” vinyl wire protector at the plug end.
• 18 gauge wire

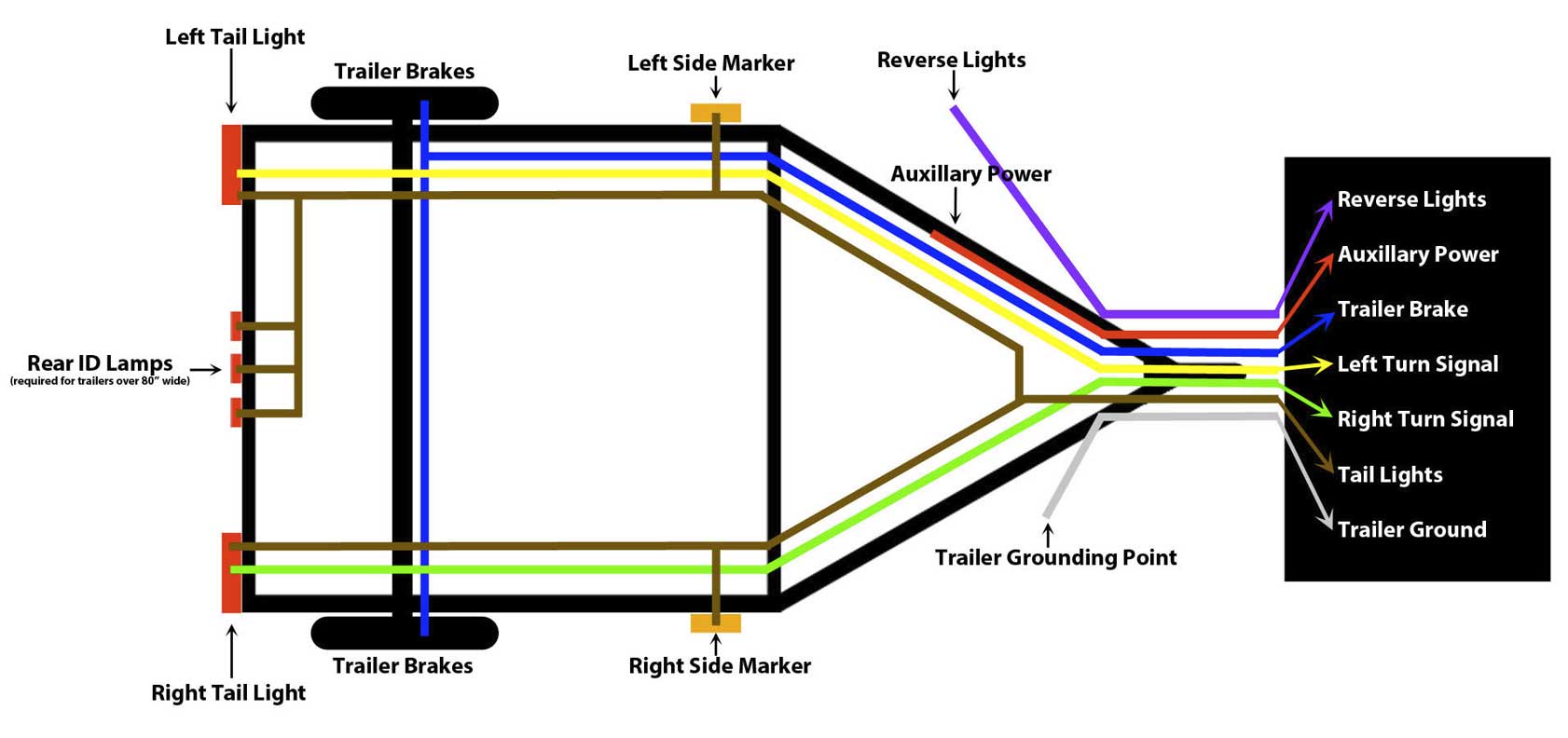

Wire Colors and Functions

• Yellow: Left turn signal & stop lights (port side)
• Green: Right turn signal & stop lights (starboard side)
• Brown: Tail, License, side marker and clearance lights
• White: Ground

Harness Configuration

• Left/Port Side: Yellow, Brown, and White wires
• Right/Starboard Side: Green, Brown, and White wires

Key Features

• Full-length ground wire provides a complete ground connection to each light, eliminating the need to use the trailer frame as a ground.
• This design helps reduce electrolysis corrosion and improves long-term electrical reliability.
• 30” vinyl loom at plug end offers additional protection against abrasion and weathering.
