38″ UNDER CARRIAGE ANGLE PK2512

 PK2512 – 38″ ADJUSTBLE  UNDER CARRIAGE ANGLE 13/14″ TIRES  ALUM IBEAM  – FOR MOUNTING ON INSIDE OF THE I-BEAM

Galvanized 38″ single-axle undercarriage for inside-frame mounting on aluminum-frame trailers. Accepts 10″ aluminum step pads with 31″ between the step mounts and works on either side of the trailer. Commonly used with 13″ and 14″ tires. Spring, steps, fender and hardware are not included.

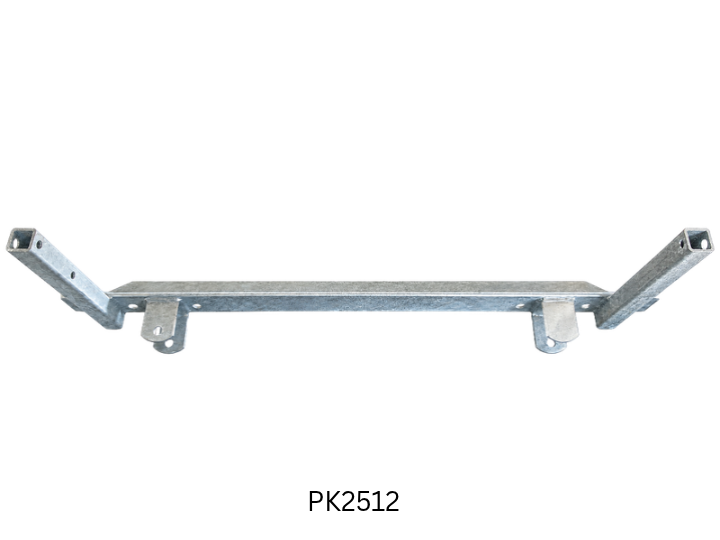

The PK2512 is a special-order galvanized single-axle undercarriage designed for inside-frame mounting on compatible aluminum-frame trailers. The 38″ assembly accepts 10″ aluminum step pads and has 31″ between the step mounts. Its universal configuration may be installed on either the left or right side of the trailer.

Specifications:

Part Number: PK2512
Type: Single-axle undercarriage for aluminum steps
Length: 38″
Trailer Side: Left or right
Mounting Location: Inside of frame
Trailer Application: Aluminum-frame trailers
Spring Application: 25-1/4″ double-eye spring
Step Application: 10″ aluminum step pads

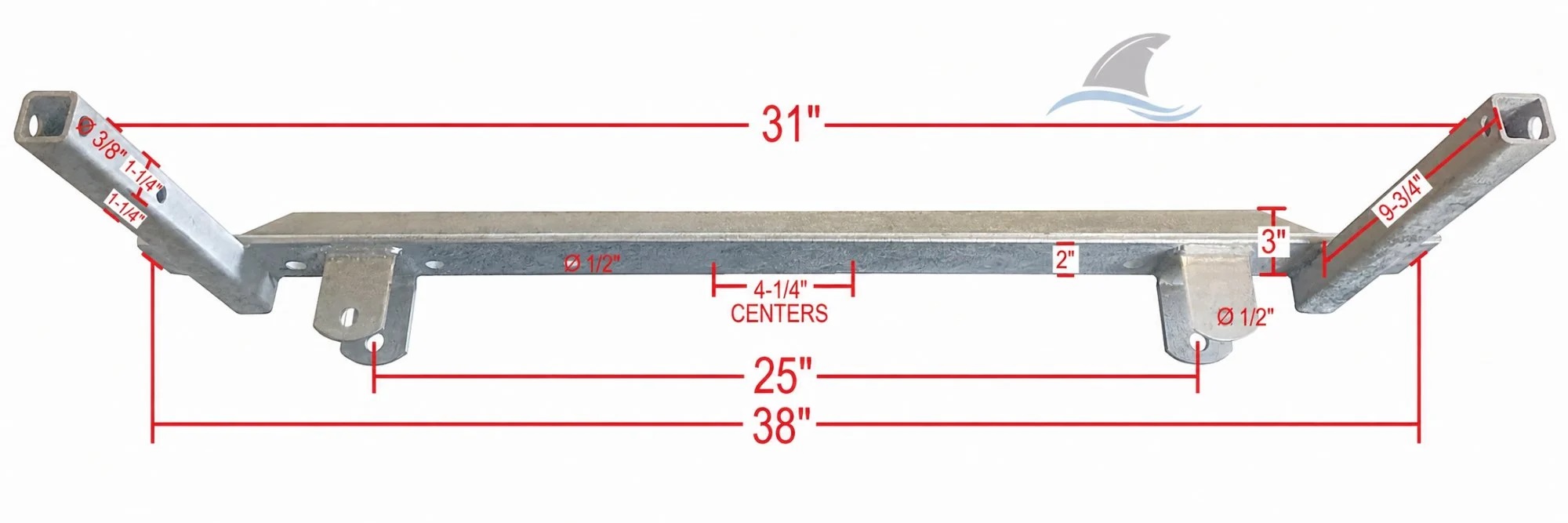

Distance Between Step Mounts: 31″
Common Tire Sizes: 13″ and 14″
Frame-Mounting Hole Diameter: 1/2″
Frame-Mounting Hole Spacing: 4-1/4″ on center
Recommended Fenders: PI1805 OR PI1805-S
Material: Galvanized
Quantity: One undercarriage
